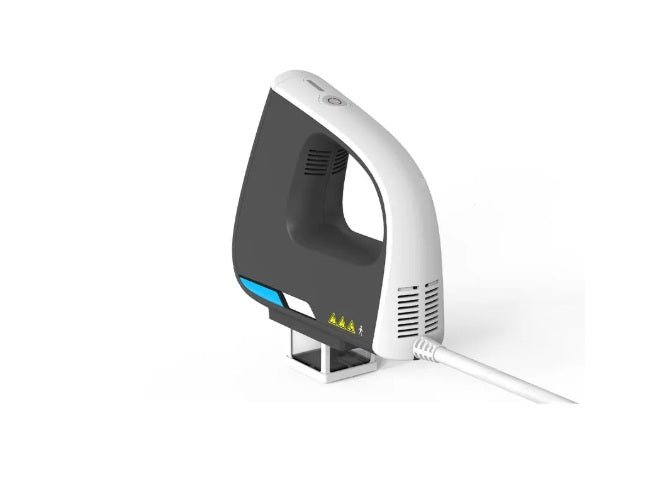

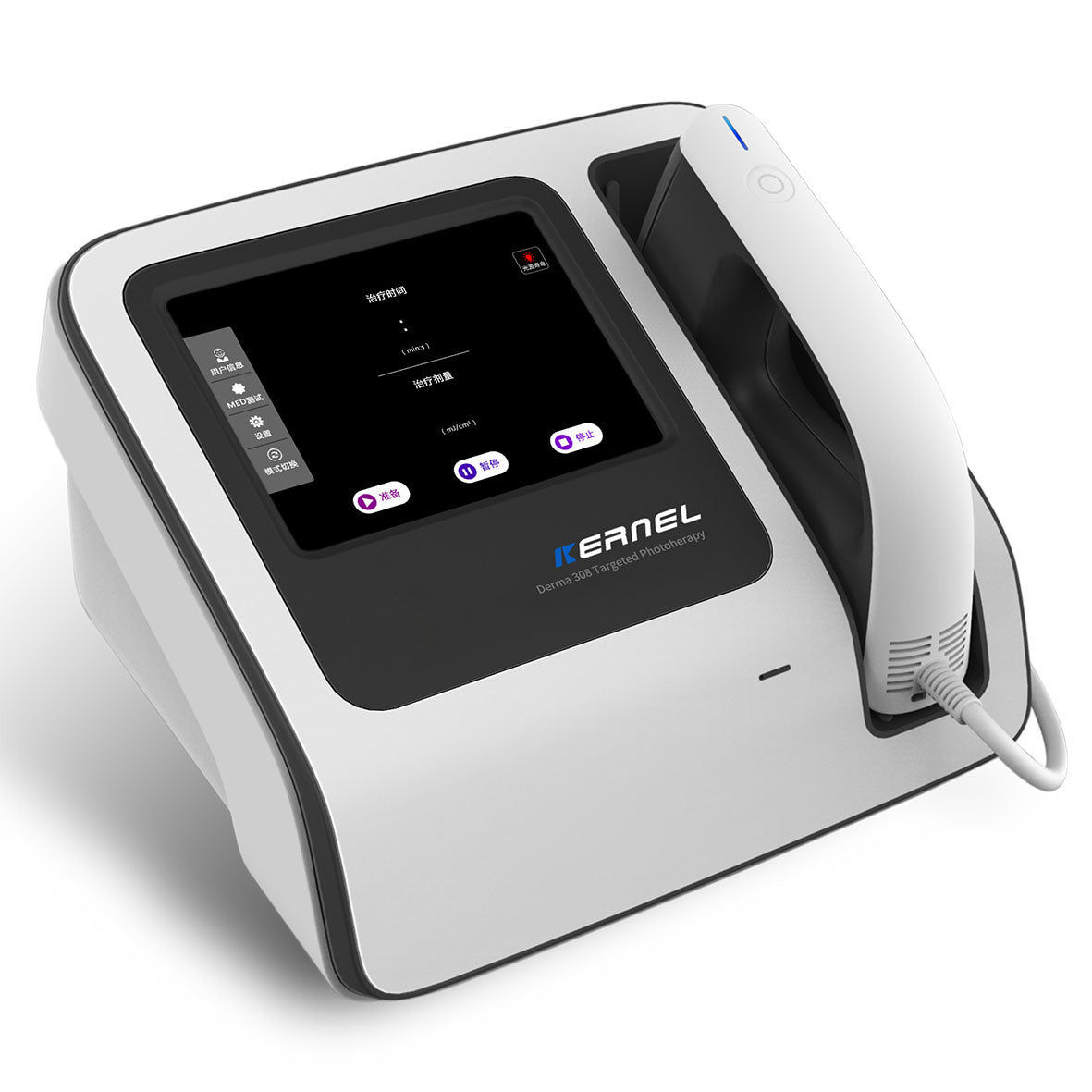

The Shape Tactics 308nm Excimer Laser System is a targeted phototherapy device utilizing a 308nm xenon chloride (XeCl) excimer light source, designed for the treatment of various dermatological conditions such as vitiligo, psoriasis, eczema, and pityriasis rosea.
Specifications
Certificate: FDA Approved
Operation Mode: Continuous operation
Light Source / Output Waveform: XeCl Excimer Light / Excimer Laser
Wavelength: 308–311 nm ± 3 nm
Irradiation / Treatment Area: 20 cm² ±10% (≈ 3 in² ±10%)
Irradiation Intensity: 50–55 mW/cm² ±10%
Treatment Speed: Up to 12× faster than standard devices
Treatment Modes: Time and Dosage (Dose & Time)
Time Setting Range: Up to 120 seconds
Work Distance: 1.18 in ± 0.20 in

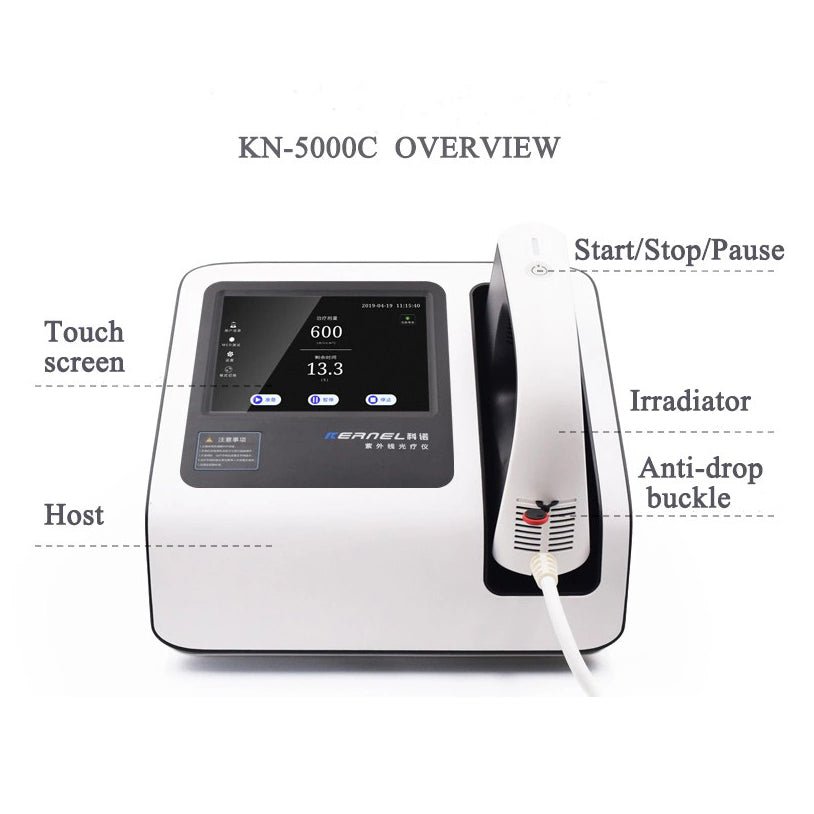

Display & Control

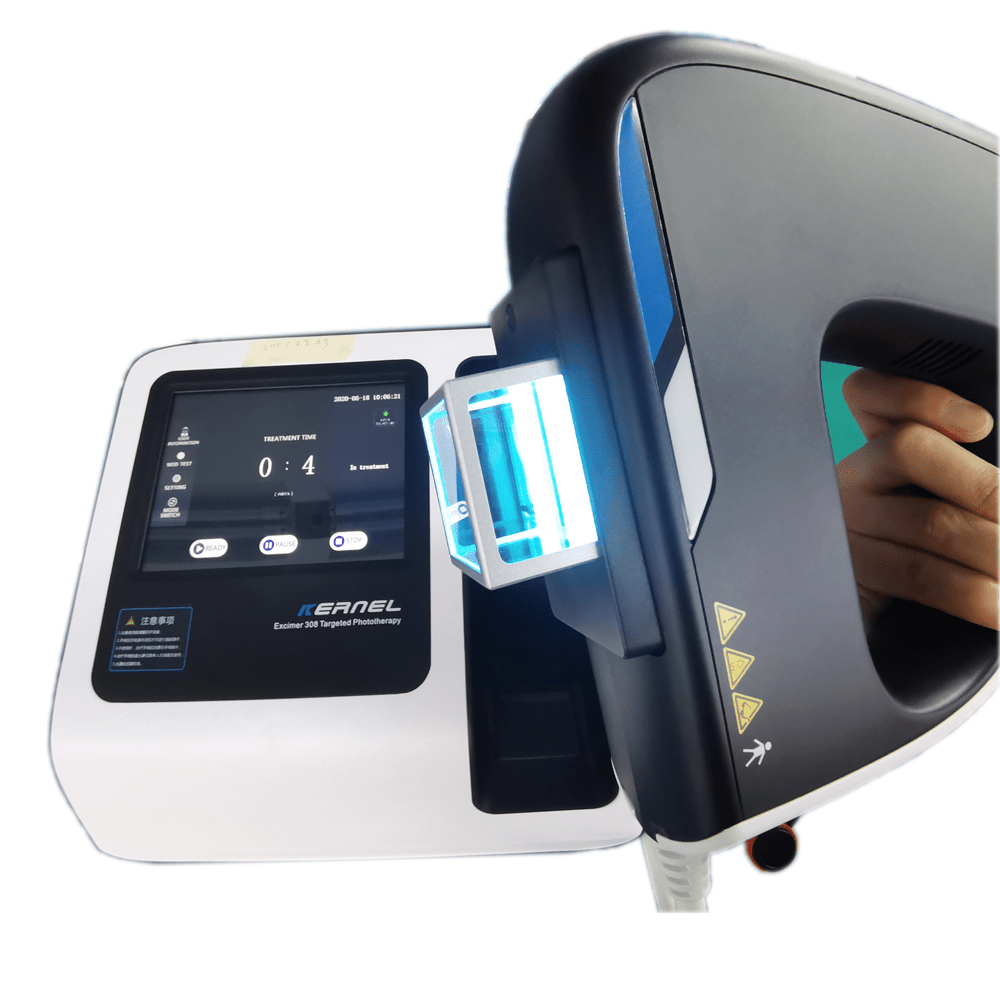

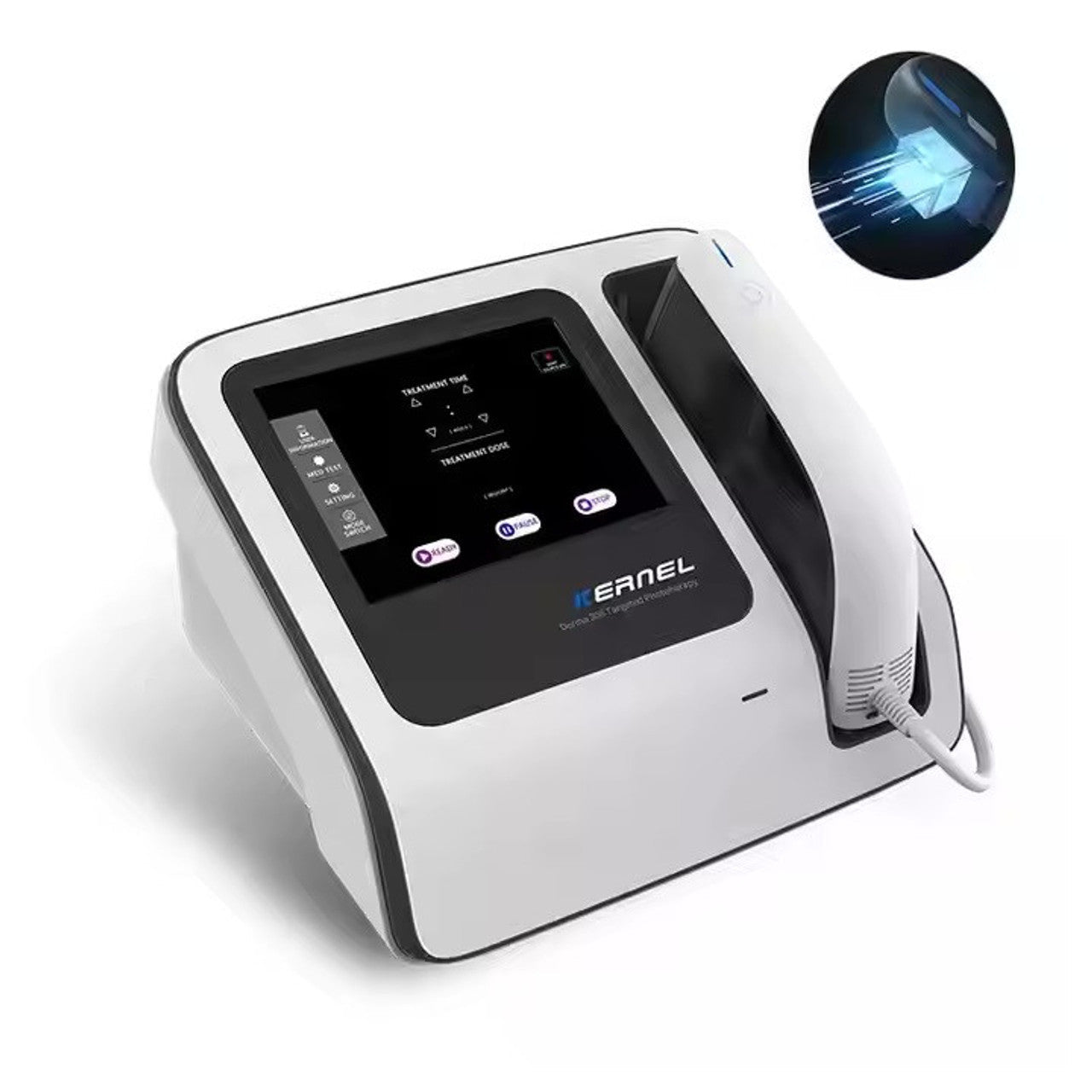

Screen: 8-inch color LCD touch screen
Built-in Functions: Minimum Erythema Dose (MED) test function
Management System: Fingerprint login & irradiation intensity calibration system
Power & Performance
Power Supply: AC220V ±10% 50Hz ±2% (output: 100–240V, 50/60Hz)
Rated Power: 160 VA
Mobility: Corded (no built-in battery)
Safety & Accessories

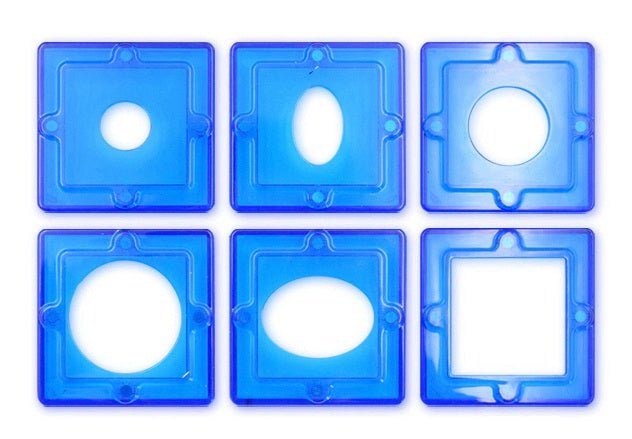

Shading Sheets / Interchangeable Tips: Multiple specifications to precisely control irradiation range, suitable for different lesion sizes (includes 6 interchangeable tips)
Protective Gear: UV safety goggles included
Lifespan & Build
Light Source Lifespan: Approx. 500 hours (rated ≥500 hours, typically ≤500 hours)
Dimensions: 16.5'' L × 13.6'' H × 16'' W
Weight: 11.02 lbs
Package Contents
1x Main Machine
1x UV Goggle
1x Charging Cable
6x Interchangeable Tips
